Boom type
The Multi 1200 attaches to the back of your tractor and has up to a 20 metre spread width.

Tow and Fert Multi 1200

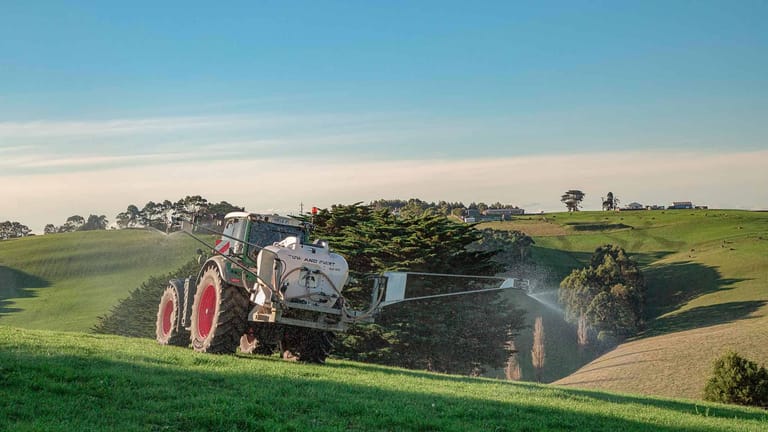

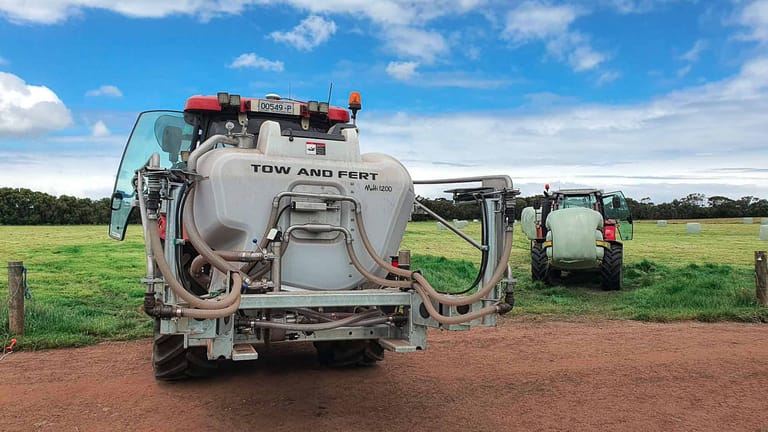

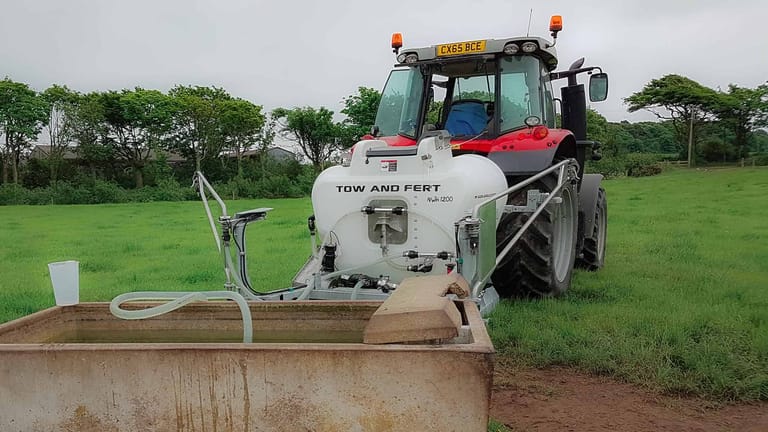

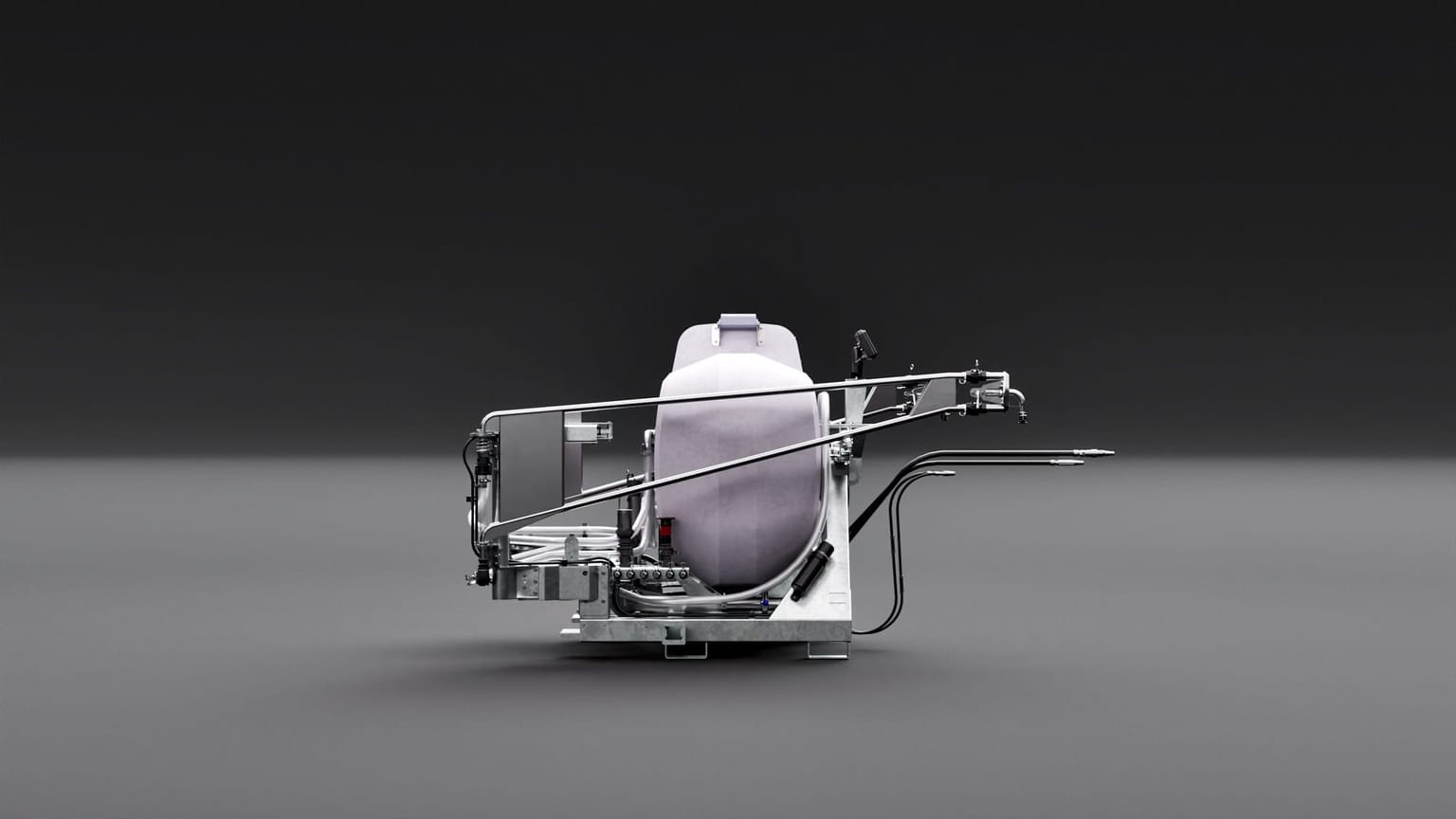

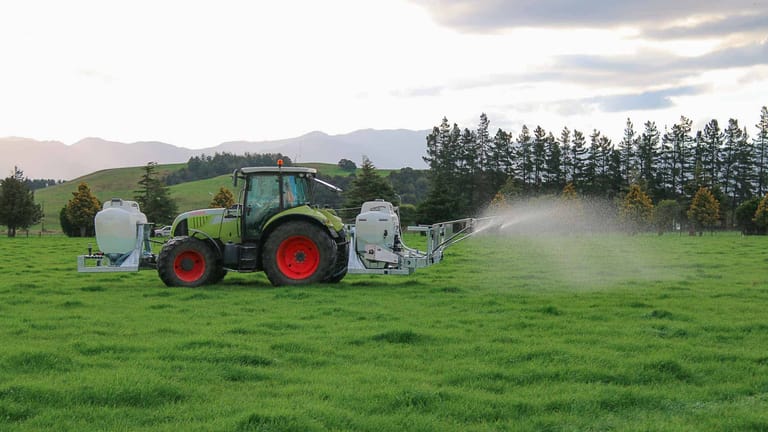

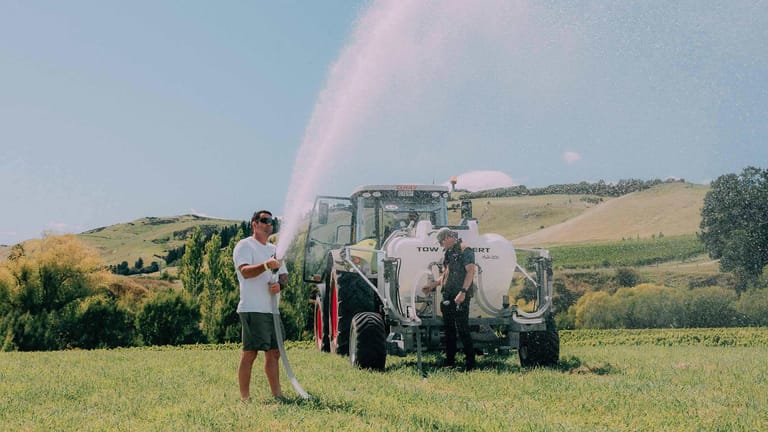

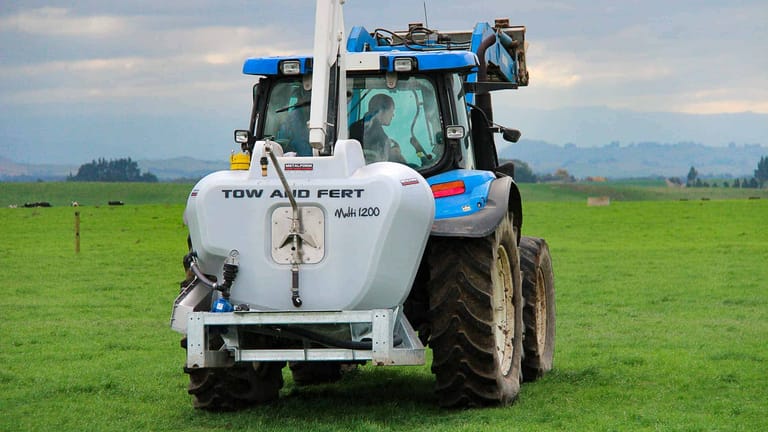

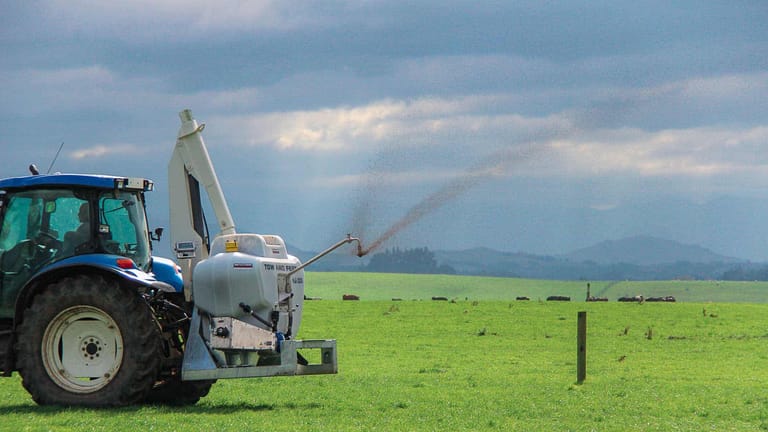

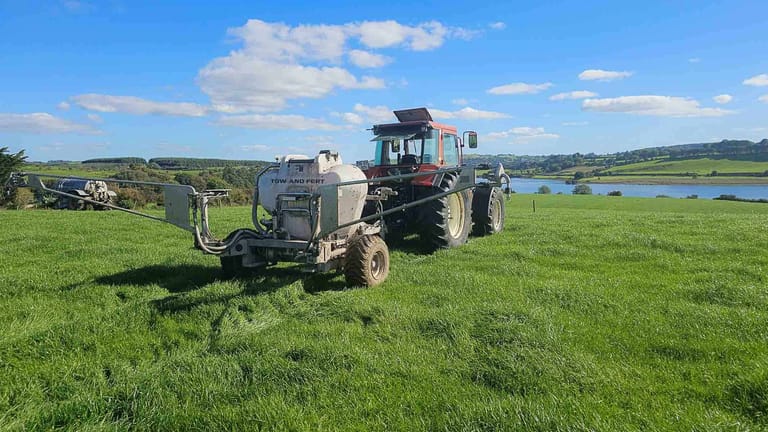

The Tow and Fert Multi 1200 attaches to the back of your tractor and has up to a 18 metre spread width. The three point linkage sprayer is ideal for farms where manoeuvrability and terrain is a factor compared to the longer trailed units. With the optional crane system, you can make this a 1 tractor solution for loading and operating. A minimum of 110hp tractor is required to handle the weight, but a larger tractor will be required on hillier terrain. The Multi 1200 can self-fill by sucking in liquid from your effluent pond or a fresh water source. With a 1200 litre capacity the Tow and Fert Multi 1200 can dissolve 1⁄2 tonne of urea in cold water, or hold 1.2 tonne of dry fine particle product in suspension. The Multi 1200 features dual booms, with a spray width of up to 18 metres, so you can cover 1 hectare in just 3 minutes. Depending on the application rate, the Multi 1200 has the capacity to cover approx. 10 hectares in one load. Using tractor hydraulics, the Multi 1200 is simple and hassle-free. Fitted with a 100% Stainless Steel trash pump and a silicon carbide mechanical seal – specifically designed for this application, the Tow and Fert is built to last. All fittings are removable without tools and can be changed in the field.

Tow and Fert Multi 1200

Tank size

1200 L

Spray width

18 m

Area per load

10 ha

Application rate

50 – 500 litres/hectare l/ha

Attachment style

3 Point Linkage

Attachment vehicle

110hp tractor or greater

Gallery

Switch above to view Pasture setup.

Boom type
Tow and Fert Multi 1200Tow and Fert Multi 1200Tow and Fert Multi 1200Tow and Fert Multi 1200Tow and Fert Multi 1200Tow and Fert Multi 1200Tow and Fert Multi 1200Tow and Fert Multi 1200Tow and Fert Multi 1200Tow and Fert Multi 1200
Specifications

Tank size

1200 L

Spray width

18 m

Area per load

10 ha

Application rate

50 – 500 litres/hectare l/ha

Attachment style

3 Point Linkage

Attachment vehicle

110hp tractor or greater

Agitation powered by

3″ Trash Pump

Pump model

Metalform Stainless 3” Centrifugal Trash Pump

Pump performance

1200 litres per minute at 0 metres lift. Max lift = 4 metres

Pump powered by

Hydraulic Motor – 33 litres/min

Dry weight

850kg

Full weight

up to 2,500kg (depending on mix)

Size

1.65m (L) x 2.00m (W) x 1.70m (H)

Optional extras

Crane Kit

Wheel Kit

Hort/Tree Crop Kit

Stationary Mixing Station

Compost Basket

Handover Video

Handover Video: The Multi 1200

Watch this informative video with Michael Smith to learn how the Tow and Fert Multi 1200 operates. In this walk-through, Michael demonstrates how to set up, operate, and get the most from the Tow and Fert Multi 1200 sprayer — a robust 1200 L liquid and fine particle applicator with up to 18 m spray width that attaches to your tractor for efficient coverage. You’ll learn key features, controls, and practical tips to maximise performance and safety.
