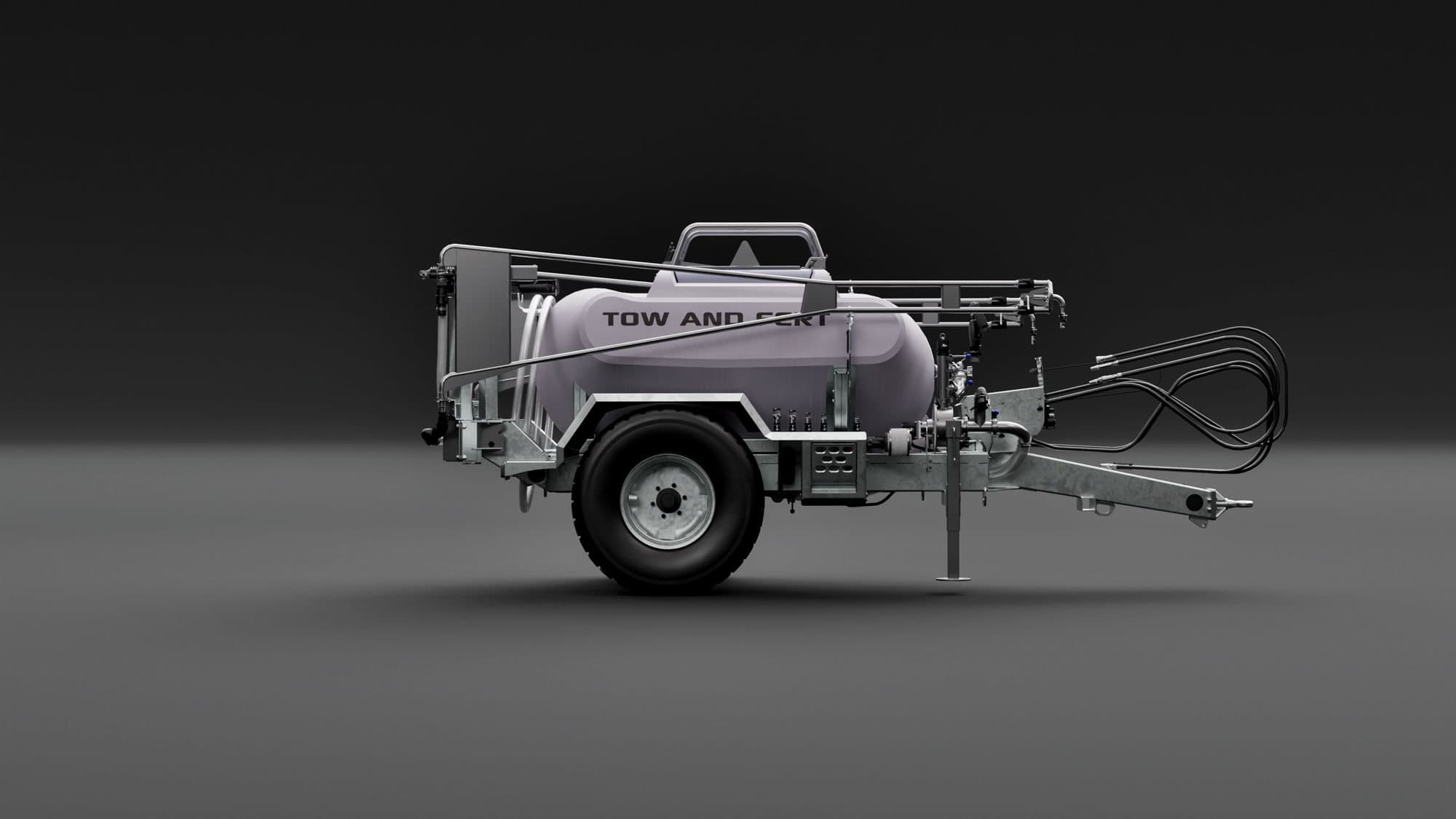

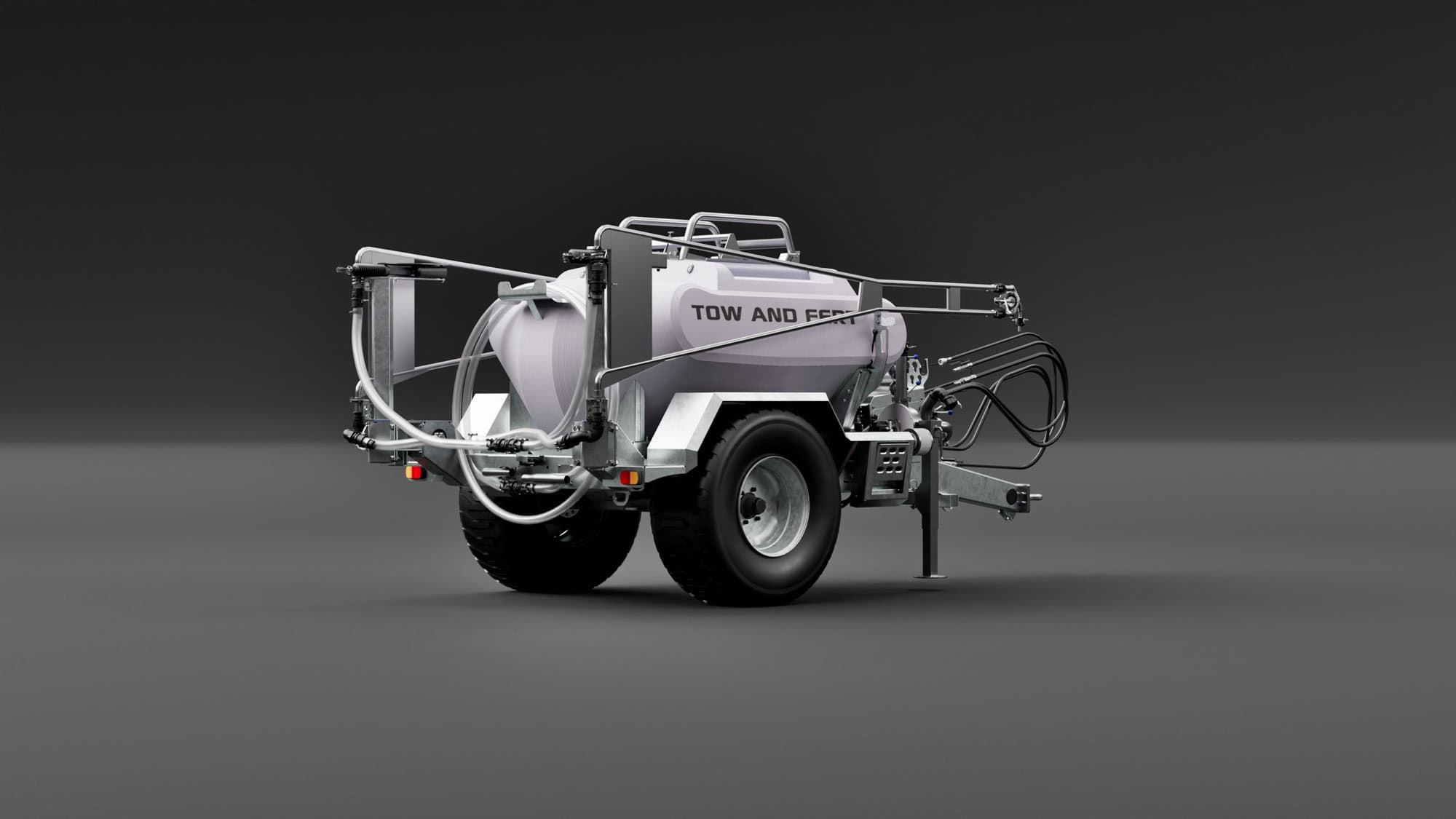

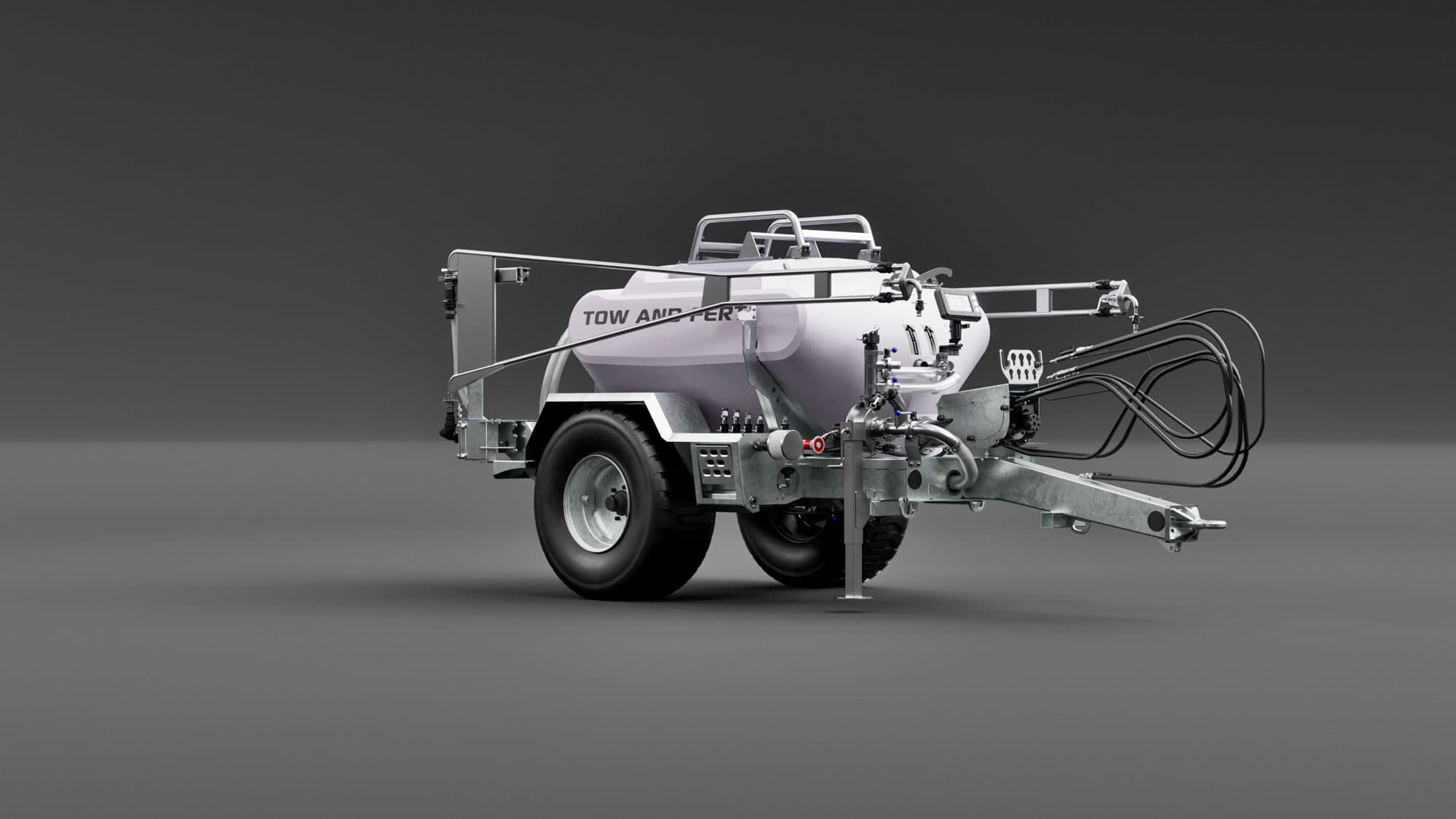

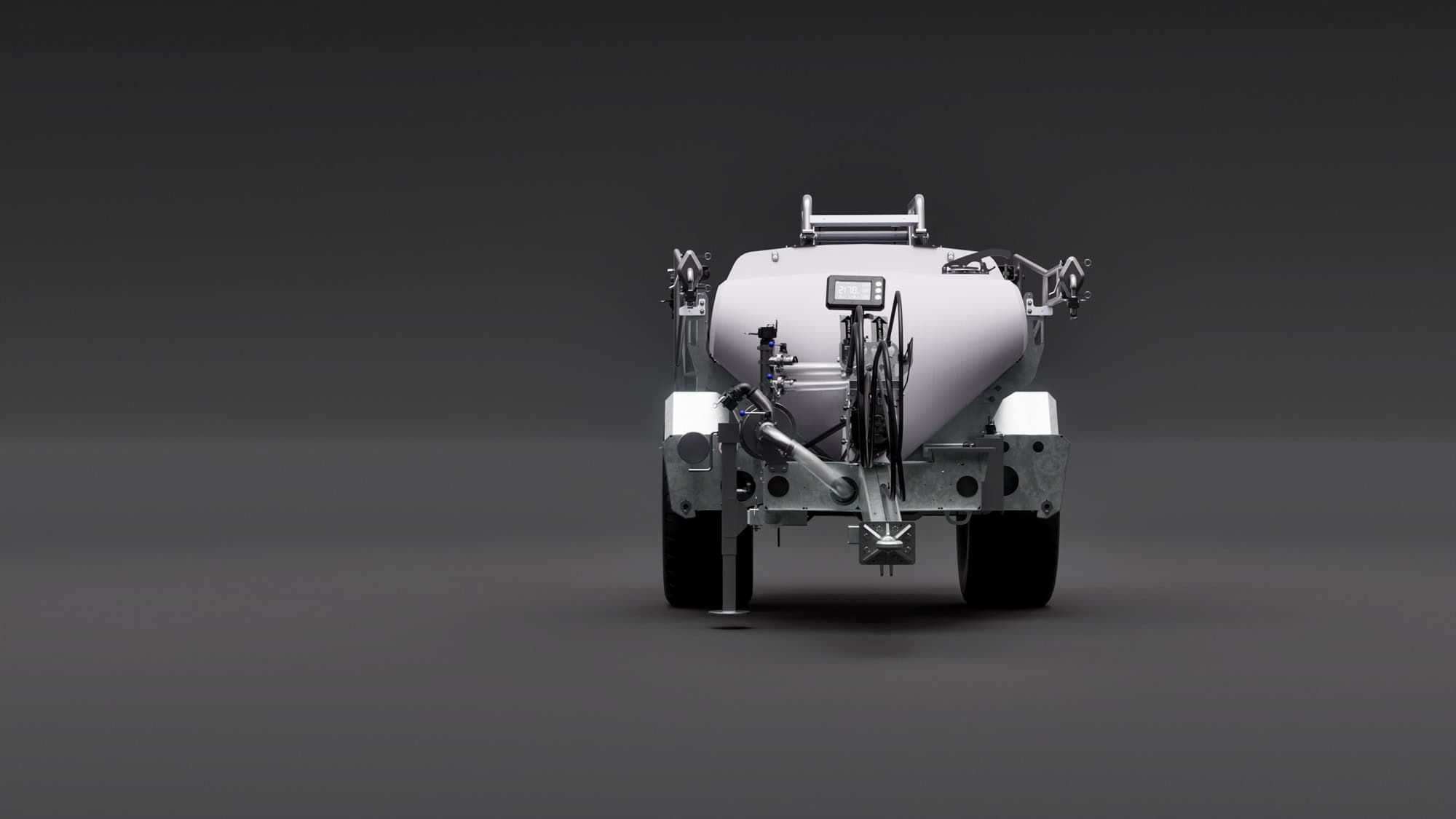

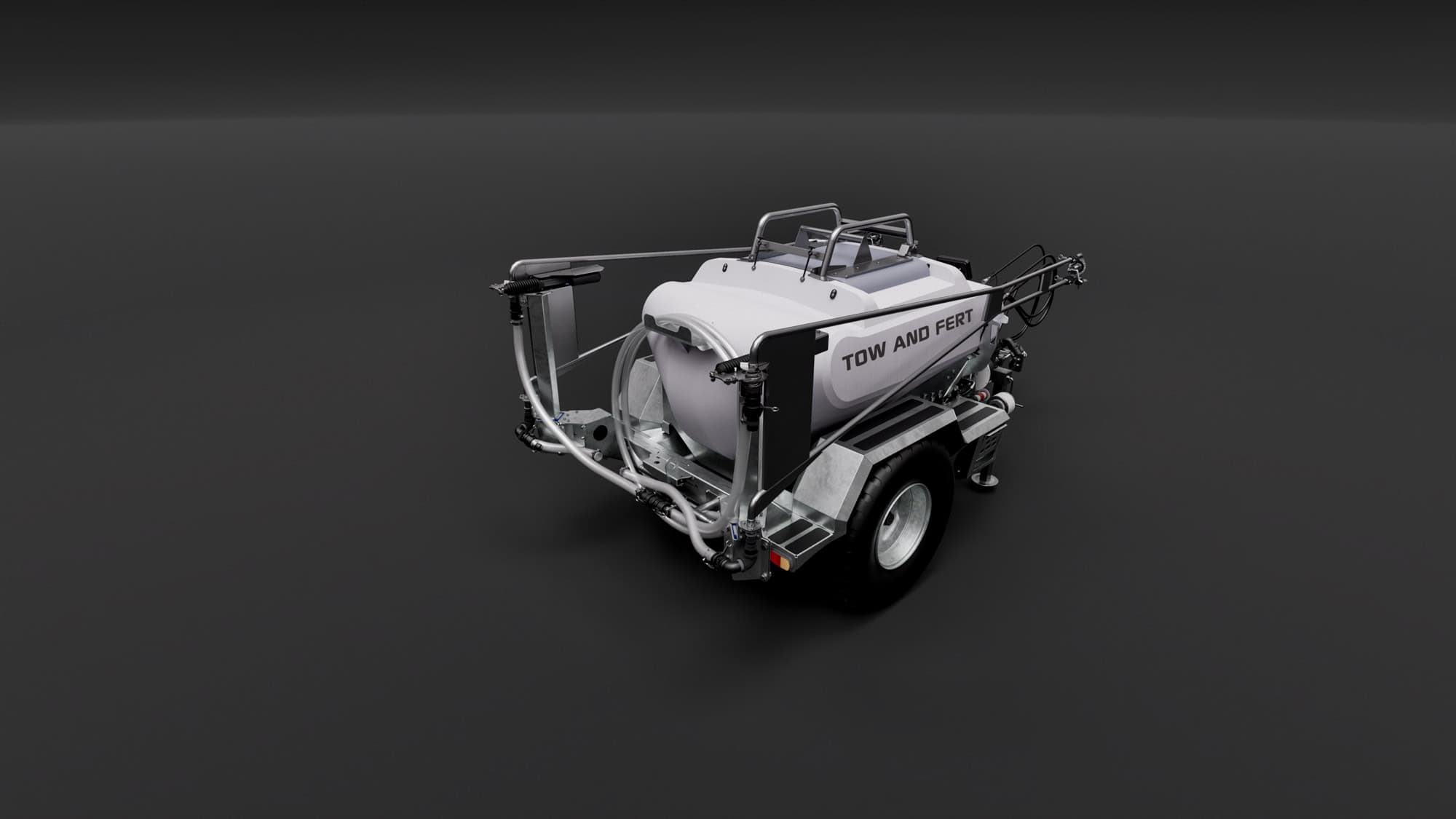

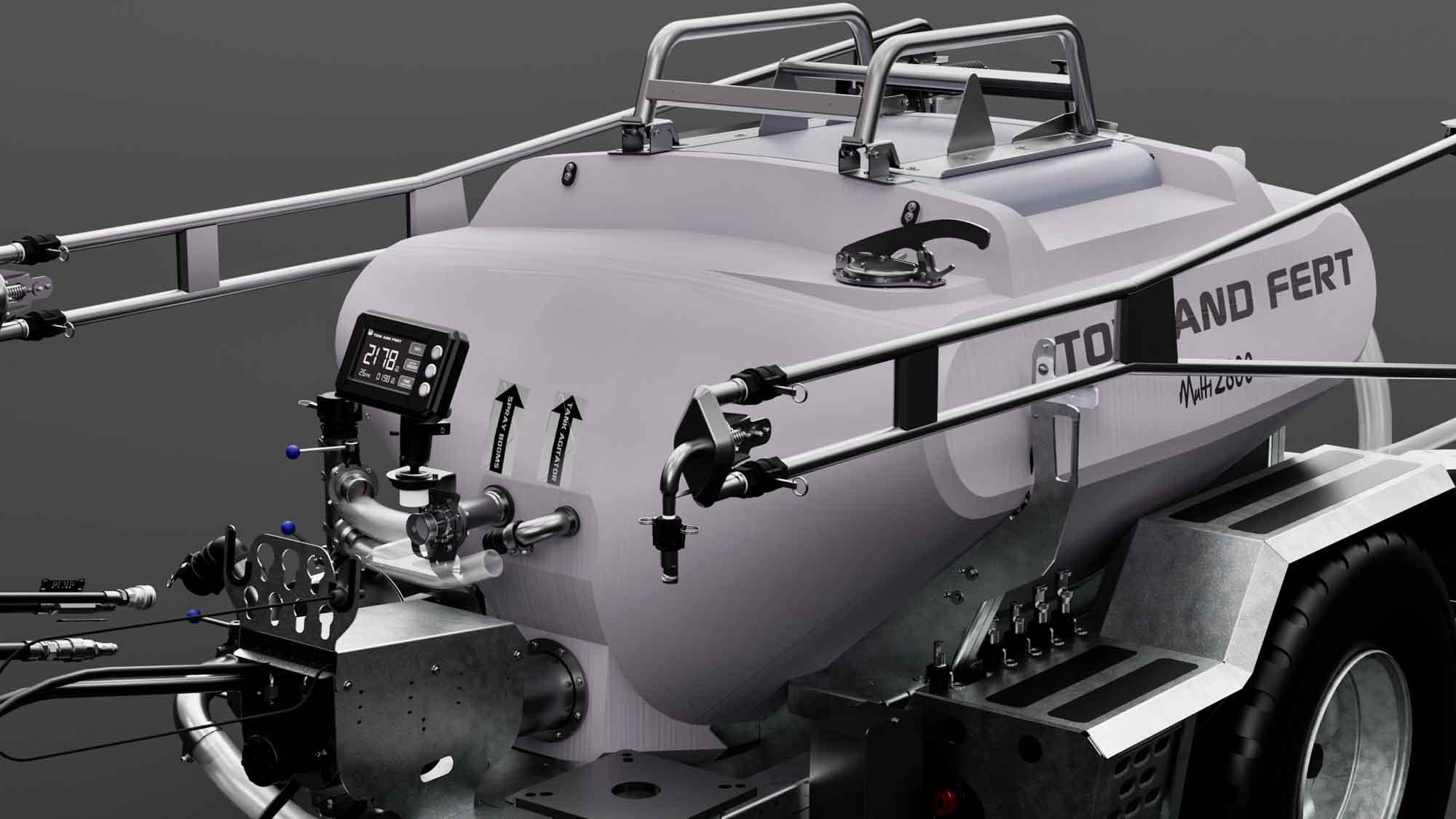

MULTI 2800
The Multi 2800 can mix 1 tonne of urea in 2000 litres of water.
Miah Smith talks about his Multi 2800 on his farm in Atiamuri, Central Nth Island New Zealand
Not too big, not too small.
The best solution for those rolling and mid sized farms, the Multi 2800 is a versatile machine that will go places others won’t.
The Multi 2800 is designed to be towed by a tractor of minimum 110hp.
It uses the PTO at 540rpm for mixing & agitation and hydraulics to run the specifically designed 3” trash pump found on all other Tow and Fert models for spraying. With the patented agitation technology in the tank, you can simply empty 1 tonne bags of fine particle fertiliser directly into water without any pre-mixing or messy work.
Combined with the optional crane, you can load 5 tonne of fertiliser product into the Tow and Fert in just 15 minutes.
With up to a 20 metre spread, the Multi 2800 can cover 1 hectare in just 3 minutes at 12 km/hr (8 mph). With a capacity of up to 20 hectares per load, this Tow and Fert makes light work of a large job.
tank volume | 2800 litres (740 gallons) |
---|---|
spray width | Up to 24 metres (79 feet) |
application rate | Variable from 50 – 500 litres/hectare |
attachment style | Trailed |
attachment vehicle | 110hp tractor or greater |
agitation powered by | PTO @ 540 RPM |
area per load | approx. 15-20 hectares (37 – 50 acres) |
pump model | Metalform Stainless 3” Centrifugal Trash Pump |
pump performance | 1200 litres per minute at 0 metres lift. Max lift = 4 metres |
pump powered by | Hydraulics – 33litres/min |
dry weight | 2,100kg (without crane) |
full weight | up to 6,500kg (depending on mix SG) |
size | 4.90m (L) x 2.30m (W) x 2.50m (H) |
Optional Extras | Crane Kit. Dual Actuation. Horticultural Booms. |
NEED FINANCE?
Get a Quote from Stratton Finance
Request Info Pack
Options
PTO or Hydraulic Agitation
In-cab Rate Assist
Learn More
Crane Kit
Section Control
Hort/Tree Crop Kit
Tow Hitch
Truck Mount
Stationary Mixing Station
The Tow and Fert Range
Optional Add-Ons
01. OPTIONAL: Load Scales
The scales kit separates the tank from the chassis on load sensitive bars and continually weighs what is in the tank. When calculating mixes using the supplied calculator software, the outputs are in kilograms which make filling the base liquid and fertiliser products accurate.
02. OPTIONAL: Dual Boom
The 100% stainless steel dual boom kit doubles the spray width to approx 20 metres and is mounted on break-away joints in case you misjudge the distance to the fence post. Without the dual boom kit, is a basic single nozzle system acheiving 10 metre spray width
03. OPTIONAL: In Cab Control
The spray operation and boom control can be done from the comfort of your tractor. The Tow and Fert (*Dual Boom model only) features a wired connection so you never need to get in and out of your vehicle meaning it is fast and accurate to operate.
04. In Line Filtration
The filter kit in plumbed between the pump and spray nozzle and filters all the flow through a 3mm filter basket. This is easily accessible and can be cleaned in less than a minute with no tools.
05. Suction Kit
The suction kit gives you the ability to use the pump on the machine to suck from an external liquid source – an effluent pond or trough.
This includes a 6 metre hose, mesh filter, firefighting nozzle, non-return valve for the pump and shutoff valve from tank suction port
06. OPTIONAL: 1 tonne Crane
If you don’t have a 2nd tractor or gravity fed hoppers/silos, then a single axis crane kit will make the operation of the Multi 1200 a one-tractor operation to fill, load and apply. It will lift 1 tonne from behind the machine and is operated from the tractor hydraulics. This will position the bag directly over the filling hole.
Book a FREE on farm demo today
The best way to see if a Tow and Fert is right for you is to put it to the test on your farm during a no-obligation FREE DEMONSTRATION.
Wherever you are in Australia we are happy to come to you to show how your business can benefit from changing to a Tow and Fert.
